Layout
50 x 60 sq ft
Plot size
3000 sq ft
Build area
2511 sq ft
Facing
North
Floors
2
Bedrooms
5
Bathrooms
5
Car Parking
Yes
Open Terrace
No
Lift
No
Approx build cost
3013200
Here's a super luxurious 5 bedroom, 5 bathrooms, north facing, 2 storeys, Vastu friendly house plan design for 3000 sq. ft. plot area.
If you are planning to build a super luxury dream home, then this modern house design has the features one can ask for.
The house can be built on a plot size of approx 3000 square feet, with plot layout as 50x60 square feet. The house has a combined built up area of approx 2511 square feet.
The ground floor built up area is approx 1273.29 square feet it features plenty of amenities and utilities. There is a large living/dining area, and a separate sitting area, and a balcony that opens from the living area.
There is one bedroom with attached bathroom, one guest room, with attached toilet, kitchen with adjacent, but separate wash area. There is a Puja room (temple or worship space) adjacent to the living area.
The first floor of the house is designed for the family, which has a combined built up area of approx 1238 square feet. The first floor has three spacious bedrooms, with attached toilets and a large drawing room. This luxurious duplex house design also features two open terraces with potted planters(combined size of approx 113 sq. ft.) accessible from the drawing area.

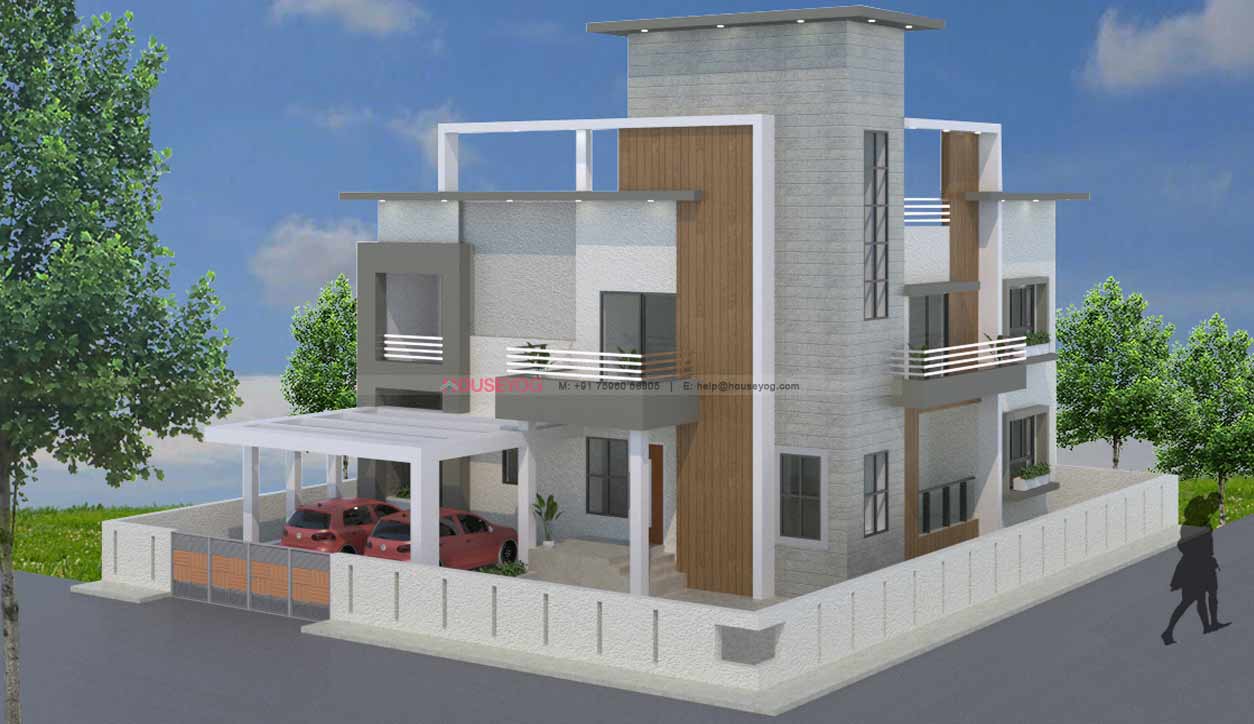

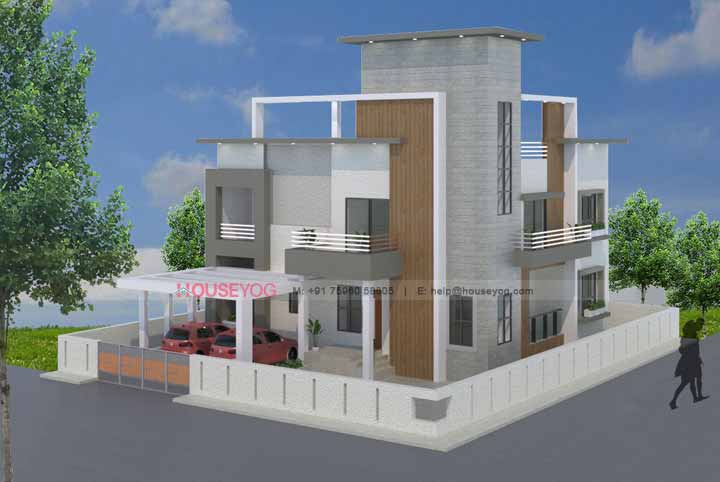

The elevation design of the house has been designed with luxury in mind, and therefore we have kept it white, highlighted with grey and brown color. The simple and minimalist house elevation design will automatically attract eye balls.

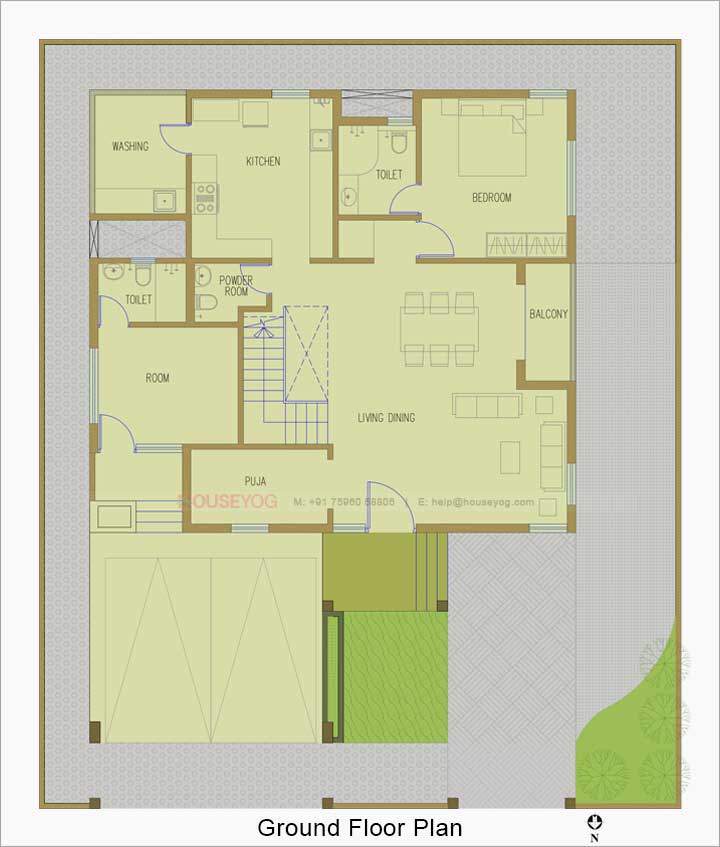

Ground Floor plan features and amenities
Built up area: 1274 sq ft, Separate Wash area, Powder room (small toilet), covered car parking space for 2 cars
Bedroom
2
Hall
Yes
Kitchen
1
Attached Bathroom
2
Common Bathroom
1
Study
No
Temple
Yes
Balcony
1
Utility space
Yes
Swimming pool
No
Garden
No
Car Parking
Yes

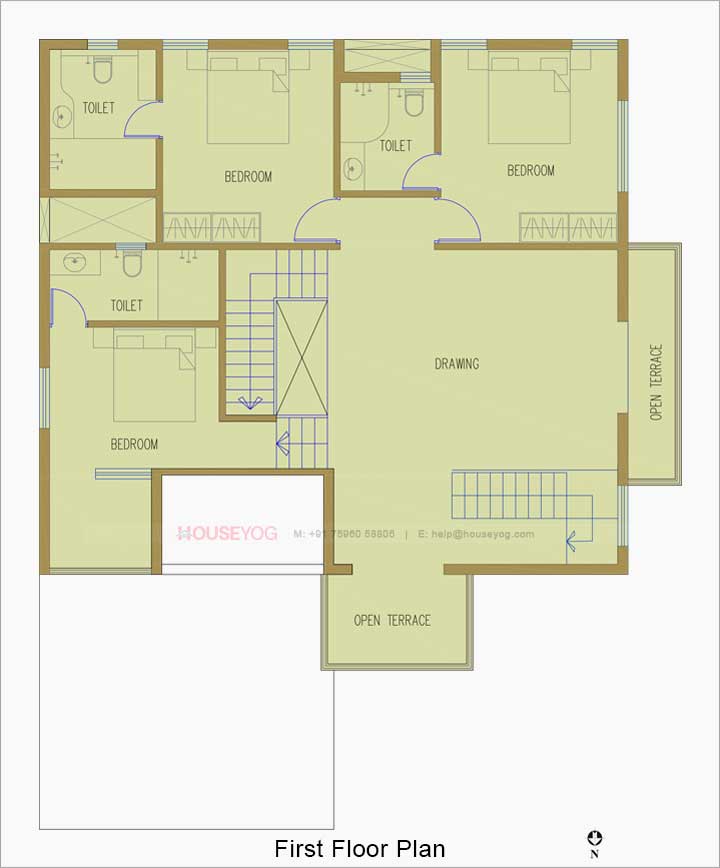

First Floor plan features and amenities
First floor built up area: 1237.62 sq ft, Spacious drawing room and open terrace with potted plants.
Bedroom
3
Hall
Yes
Attached Bathroom
3
Study
No
Temple
No
Balcony
2
Utility space
No
Swimming pool
No
Garden
No
Car Parking
No
Design style: Bungalow, Contemporary, Duplex, Indian, Luxury, Modern
Last updated on: 19 Dec 2020
Design Code: HP1006
