Layout
30 x 65 sq ft
Plot size
1950 sq ft
Build area
2063.19 sq ft
Facing
North
Floors
2
Bedrooms
4
Bathrooms
5
Car Parking
Yes
Open Terrace
No
Lift
No
Approx build cost
2575828
Here's a modern two floor house design for approx 2000 sqft plot size with 4 bedrooms, 5 bathrooms, covered car parking and open terrace.
This beautiful and modern house design can be built on a plot size of approx 30x65 sq ft. The two floor house has a built up area of approx 2063 sq ft.
The ground floor of this beautiful house design has a super built up area of approx 1100 sq ft. The floor plan features a small verandah near the main gate. Main door of the house opens to a beautiful drawing room that has a sofa set, center table and entertainment unit.
After crossing the drawing room, you enter into a mid size living room, and then there is a separate dining area. Adjacent to the dining room is a kitchen with separate washroom and one bedroom with attached bathroom. In this house design, we have also provided one common bathroom and covered car parking space on the ground floor.
The first floor of this beautiful, spacious and luxurious bungalow style duplex house has the super built up area of approx 963 sq ft. On the first floor of the house we have provided three bedrooms, two attached bathrooms, one common bathroom, hall and open terrace of approx 231 sq ft with potted planters and seating area to host your friends and guests.

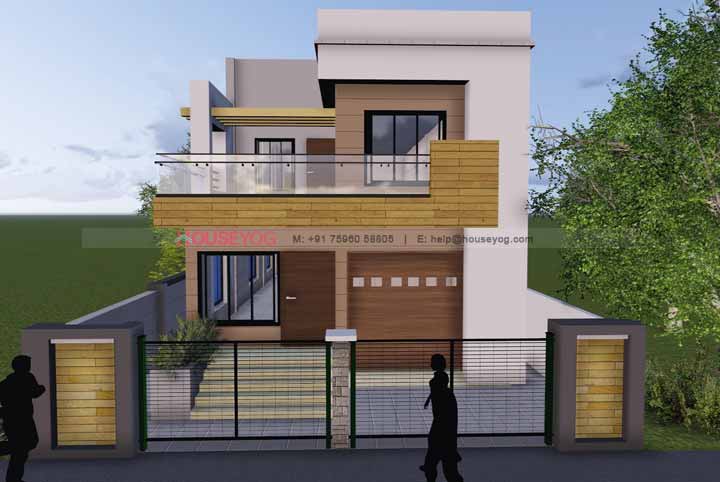

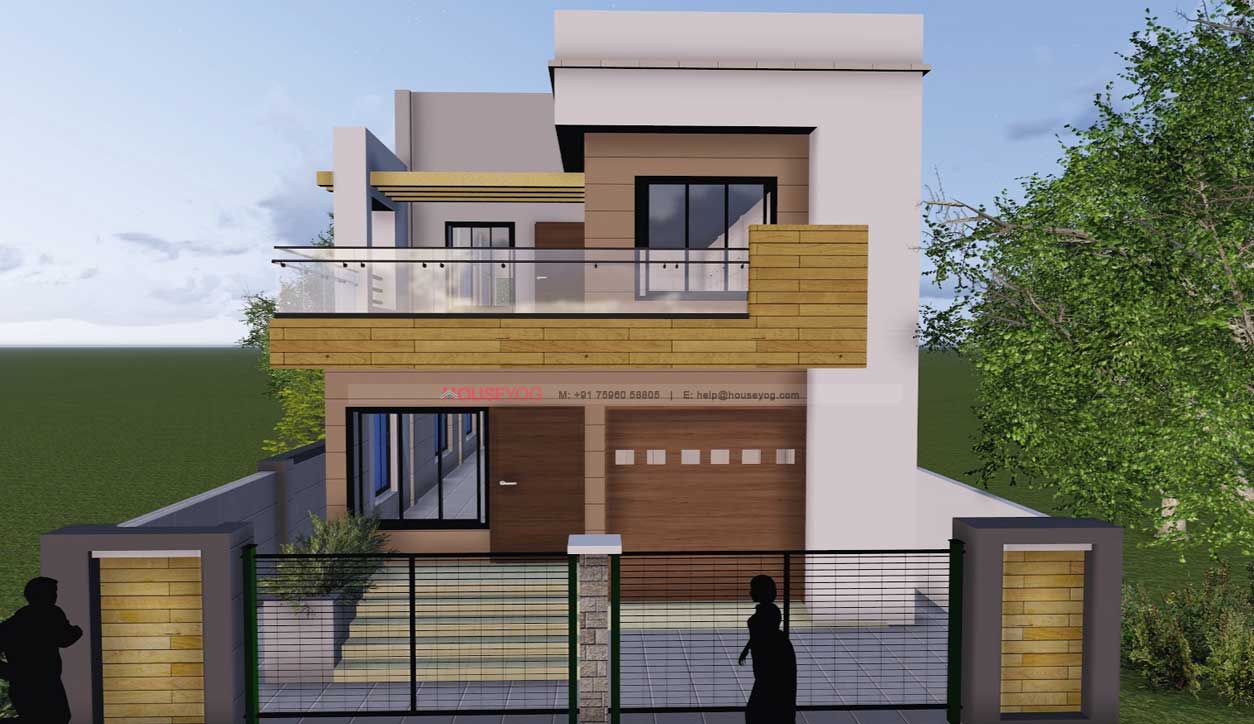

The overall building elevation has been designed to facilitate natural light and air. Front design of the house looks modern, rich and luxurious. We have used wall tiles on front exterior walls to make the elevation look luxurious, which can be replaced by exterior wall paints.
On the front and side boundary wall of this beautiful duplex bungalow style house, we have used modern wall tiles along with complementary wall colors.
If you like this modern duplex house design and want some changes, then don't hesitate to contact us as our architects and 3D experts can make those changes to fit your plot and design requirements quickly and easily.

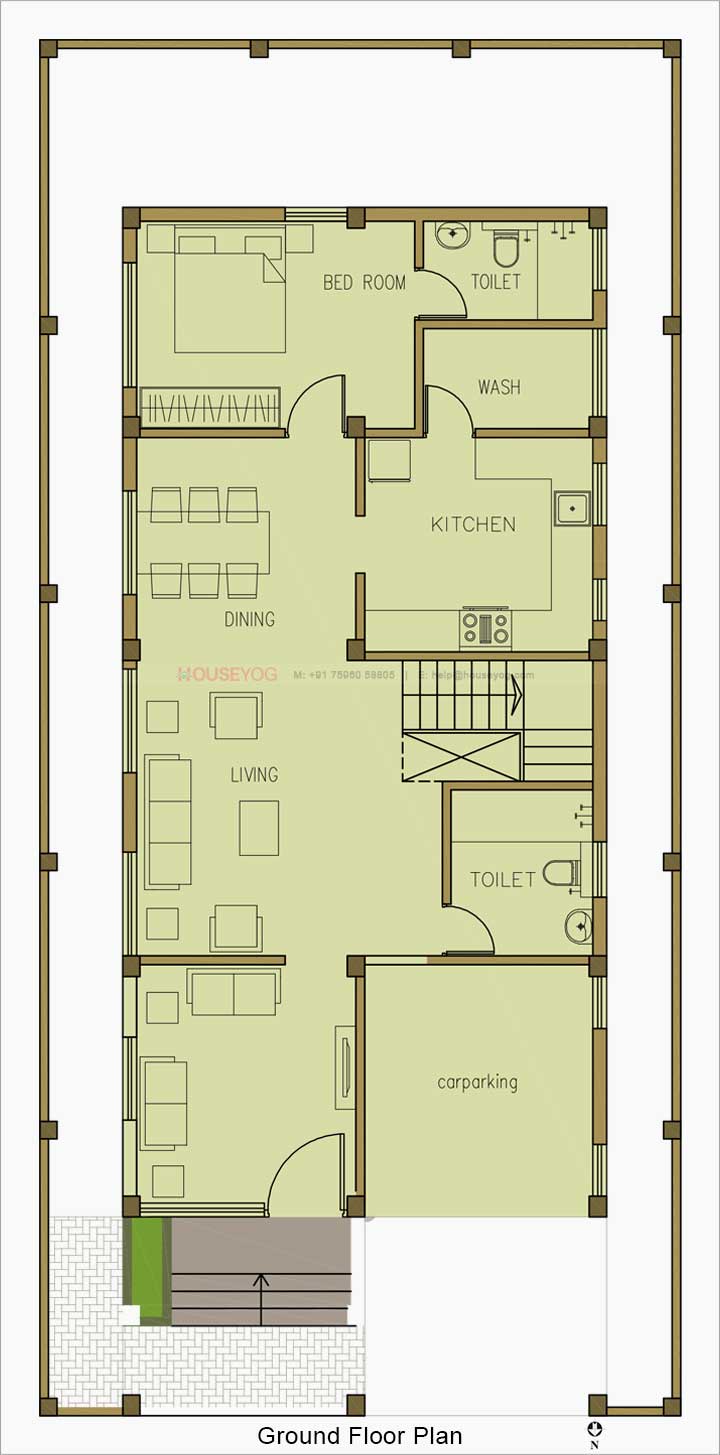

Ground Floor plan features and amenities
Ground floor built up area approx 1100 sq ft, features verandah, separate drawing room, living room, dining area and one covered car parking and open space.
Bedroom
1
Hall
Yes
Kitchen
1
Attached Bathroom
1
Common Bathroom
1
Study
No
Temple
No
Balcony
1
Utility space
Yes
Swimming pool
No
Garden
Yes
Car Parking
Yes
First Floor plan features and amenities
First floor built up area approx 963 sq ft and features an open terrace with potted planters and seating arrangement.
Bedroom
3
Hall
Yes
Attached Bathroom
2
Common Bathroom
1
Study
No
Temple
No
Balcony
1
Utility space
No
Swimming pool
No
Garden
Yes
Car Parking
No
Design style: Bungalow, Duplex, Modern
Last updated on: 22 Mar 2021
Design Code: HP1022
