Layout
35 x 50 sq ft
Plot size
1750 sq ft
Build area
4300 sq ft
Facing
South
Floors
3
Bedrooms
4
Bathrooms
5
Car Parking
Yes
Open Terrace
No
Lift
No
Approx build cost
5160000
Planning to build a house of your own a 35X50 sq ft South facing plot? Here’s the latest 35x50 house plan for a south-facing plot. This 4 BHK, 3 Storey house design has a separate office room, a store room, an open terrace, a front balcony and car parking space to park 4 SUV cars and bikes.
Although we have designed this beautiful and modern 4 BHK house plan for a 35x50 sq ft south-facing plot, you can use this modern and spacious house plan and tweak it to fit even a 32x50, 33x50, 34x50 sq ft plot.
Let me take you through this 35x50 sq ft 3-storey house plan.

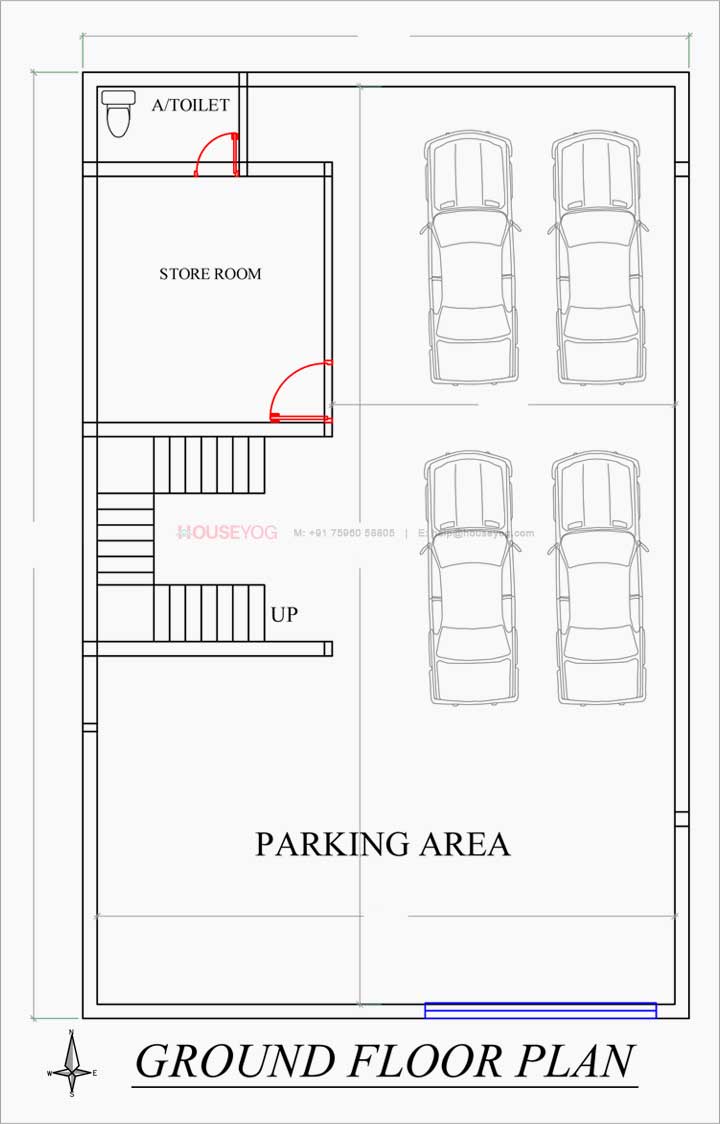

The ground floor plan of this house is pretty open and spacious. It's designed this way intentionally because the clients wanted to have empty space at the ground level that can be used differently as per need.
To begin with, we have U-shaped stairs that lead you to the upper floors. Just behind the stairs, we have a huge size store room and a common toilet. The storeroom can easily be converted into a guest bedroom as and when needed on special occasions. Then we have plenty of space for car parking, ideally, 4 SUV cars can be parked and still, plenty of space will be left on the ground floor.
As you take the stairs and move to the first floor of the house, you enter the big size hall cum the living space. To your right, towards the front, we have one bedroom with a balcony and a common toilet on one side. On the other side, we have an L-shaped kitchen and a dining area. Just attached to the kitchen, we have a wash area as well. To the left, we have two bedrooms with attached bathrooms in each bedroom and a pooja room.

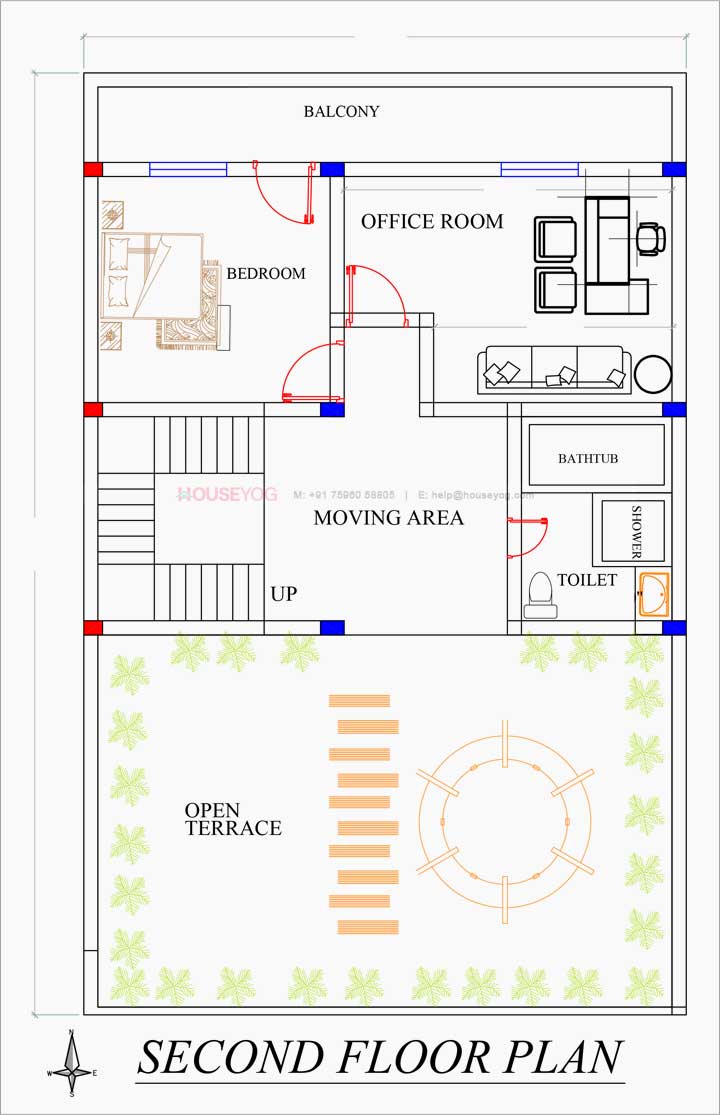

As you move upstairs from the first floor, you reach the second floor of this house. On the second floor, we have provided one bedroom, one office room, and a huge size bathroom with provision to install a bathtub and living space.
We are only using a portion of the second floor for construction and the rest of the space is used as an open terrace that can further be designed and decorated with potted plants and greenery, swings etc.

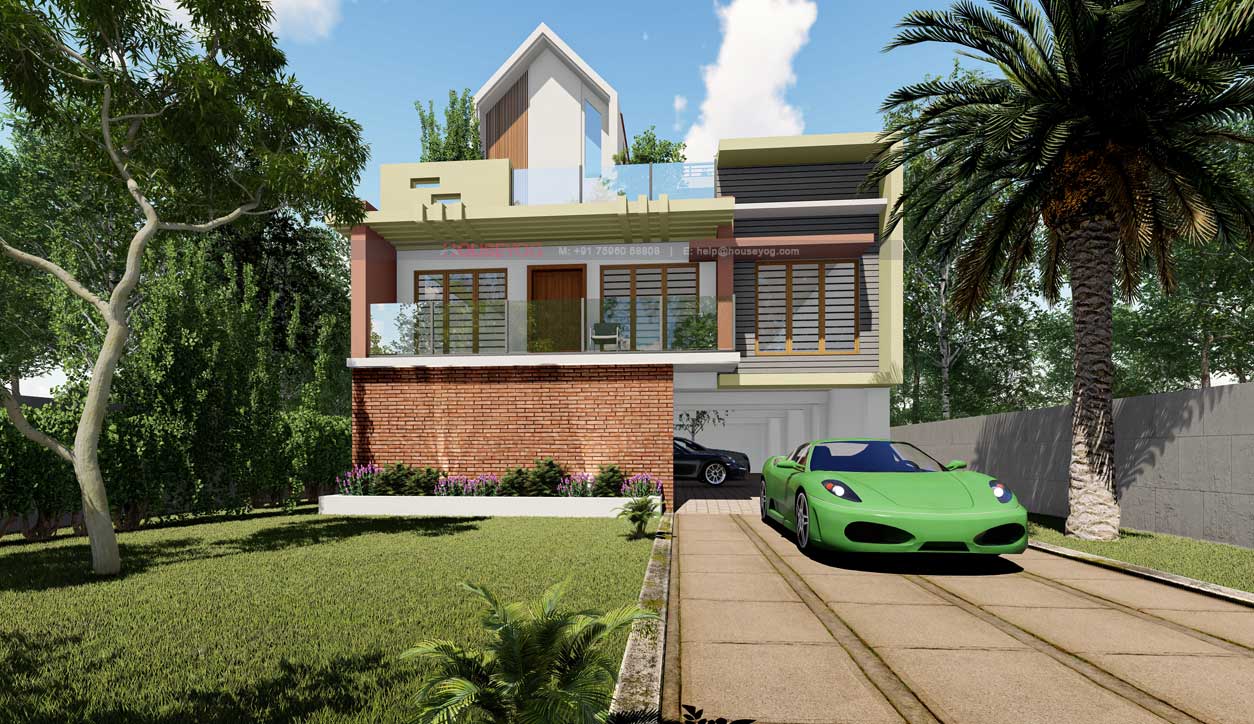

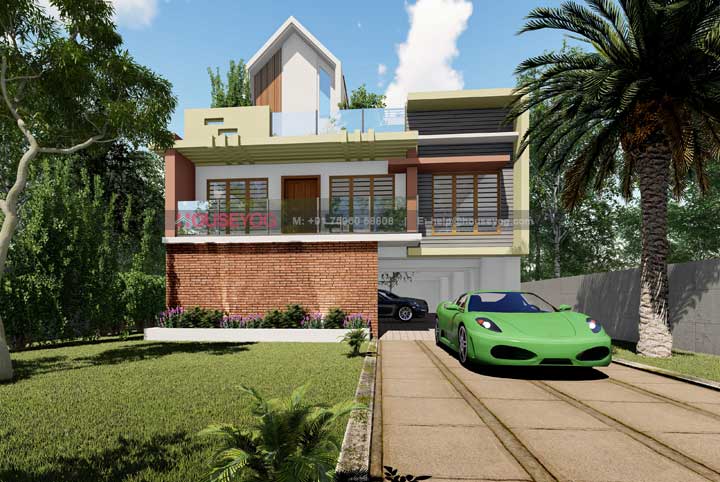

For the elevation design of this beautiful 35x50 south-facing house plan, the client wanted this house to look modern. But, without complicating anything in design. As the house is being constructed in a growing town, finding highly skilled labour may be challenging at times. So for that very reason, we have used a minimalist approach which designing the elevation of this 35x50 3-storey house.
We have used stone cladding on a part of the front wall. Aside from that, we have used simple colours like brown, white and lighter shades of green as the main paint colour for this building. On the rooftop, the clients wanted a hut-like sloped roof design, and therefore you see the slope on the terrace. All in all, the client was very satisfied and happy with this design and all is well if the client is happy.
Although this 35x50 south-facing house plan is custom designed for one of our clients in Madhubani, Bihar, if you liked this plan and want to customize it to suit your plot and requirements, we can do so for you. Talk to us now at 7596058805 and talk to the expert architect now.
Ground Floor plan features and amenities
Open space with multiple car parking, one big store room and one common toilet.
Bedroom
1
Common Bathroom
1
Study
No
Temple
No
Utility space
No
Swimming pool
No
Garden
Yes
Car Parking
Yes
First Floor plan features and amenities
On the first floor of this beautiful house design, we have three bedrooms, 3 bathrooms (2 attached, 1 common), a living area, a kitchen with a wash area, a dining area and a big size balcony with potted plants at the front.
Bedroom
3
Hall
Yes
Kitchen
1
Attached Bathroom
2
Common Bathroom
1
Study
No
Temple
Yes
Balcony
1
Utility space
Yes
Swimming pool
No
Garden
Yes
Car Parking
No
Second Floor plan features and amenities
On the second floor (terrace), we have provisioned for one bedroom, one office cum study room, one decent size bathroom with bathtub and a hall. rest of the space is used as an open terrace and can be decorated with plants and swings etc.
Bedroom
1
Hall
Yes
Common Bathroom
1
Study
Yes
Temple
No
Utility space
No
Swimming pool
No
Garden
Yes
Car Parking
No
Design style: Bungalow, Duplex, Indian, Luxury, Modern, Simple
Last updated on: 20 Jun 2023
Design Code: HP1053
